BIOROCK ST-10000 Primary Tank

BIOROCK ST-10000 Primary Tank

The ST-10000 Primary Tank has a rectangular base and and oval top part.

The tank has 1x compartment. The volume and overall capacity can be increased when installing the units in series or in parallel.

The BIOROCK-ST-10000 Primary Tank has integrated slots on the base of the tank enable safe movement by fork lift vehicles.Lifting eyes are situated around the tank, enabling lifting for ease of installation.

Rings are positioned at the base of the tank allowing the anchoring using straps or anchors when installed in wet ground conditions.

The ST-10000 Primary Tank has an integrated extension set.

All BIOROCK Primary tanks are standard equipped with an effluent filter in the water outlet pipe. For specification, see "Accessories" (Effluent Filter).


Specifications

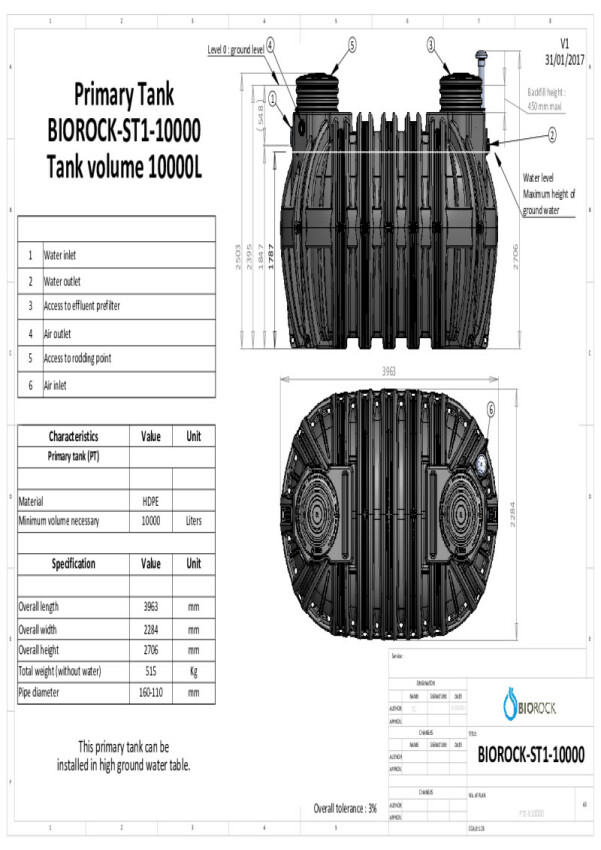

Product dimensions
spec value
Length 3963 mm
Width 2284 mm
Height 2395 mm
Weight 515 kg
Volume 10000 litres
Documentation
Available downloads
